CLEAR LAB MINI RD BLISTER MACHINE
CLEAR LAB mini machine is a flat-bedblister packing machine, which can be utilized for thermo forming and cold forming. The CLEAR LAB mini machine is compact and customizable. It can used for clinical trial laboratories and facilities requiring low volume packaging solutions.
SALIENT FEATURES:
-
High speed servo driven web indexing.
-
User friendly HMI with touch screen (Human Machine Interface).
-
Best option for R & D trials.
-
Pneumatic driven stations and controlled by fully functional high speed PLC.
-
Pneumatic- Festa make for fast response, oil free, minimum wear and tear and easy maintenance.
-
Snap in type change parts with quick change over.
-
Modular balcony construction complying with cGMP standards.

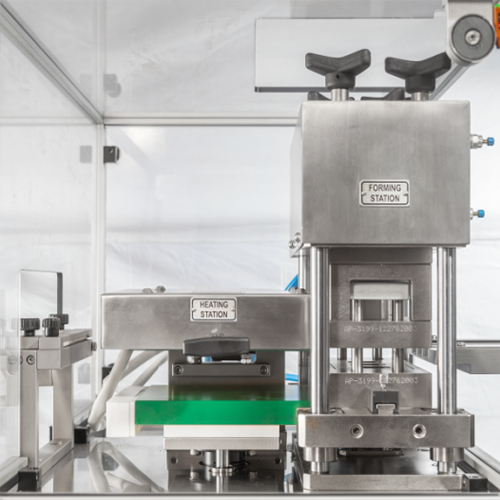

FORMING STATION

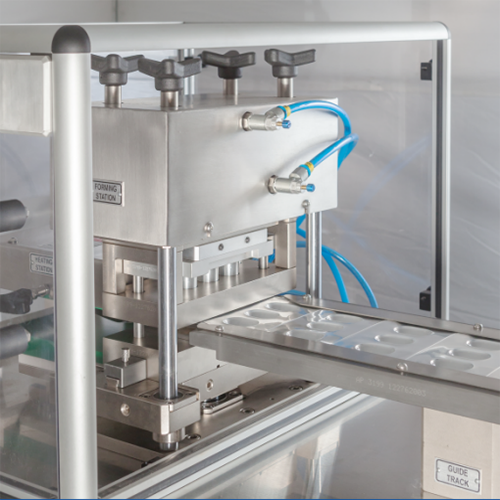

SEALING STATION

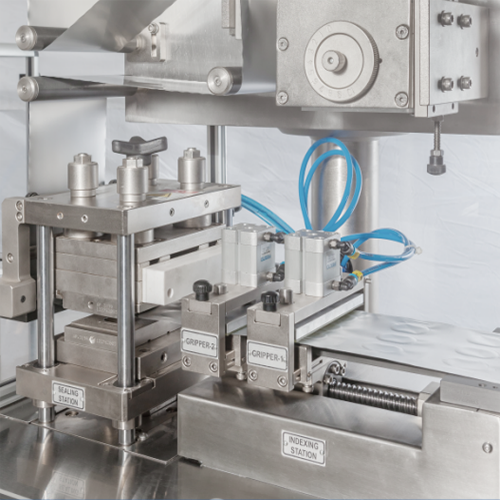

HIGH-SPEED SERVO BASE WEB INDEXING

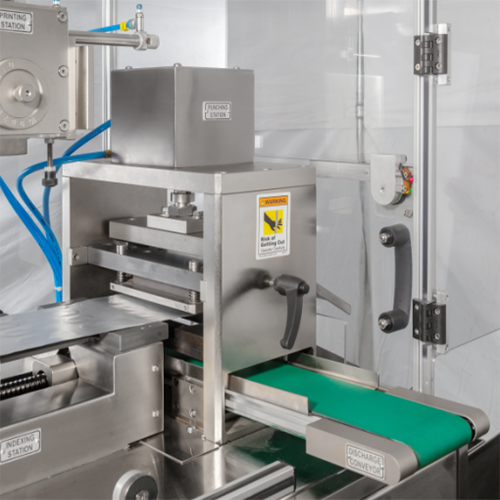

PUNCHING TOOL WITH DISCHARGE CONVEYOR FOR SMOOTH PRODUCT HANDLING
TECHNICAL DATA:
| 01 | Blister Size - Minimum | 30 x 50 |
| 02 | Blister Size - Maximum | 68 X 110 |
| 03 | Forming Depth | 12mm |
| 04 | Forming Film | PVC and ALU/ALU, PVC / PVDC & ACLAR |
| 05 | Base Foil Roll Diameter | 250 mm maximum |
| 06 | Base Foil Width | 120mm |
| 07 | Lidding Foil | Heat Sealable Aluminum Or Paper |
| 08 | Lid Foil Roll Diameter | 150mm |
| 09 | Lidding Foil Width | 120mm |
| 10 | Number Of Cycles - Pvc | Max. 20 cycles/min |
| 11 | Machine Dimensions | Approx. - L=1565, W=640, H=1445 (in mm) |
| 12 | Machine Weight | Approx - 600 kg |
| 13 | Air Consumption | Approx. 7.2 cfm. at 6 bar pressure |
| 14 | Power Supply | 440V, 50 Hz, connected load approx. 4.0 KW |
| 15 | Cooling Water | Approx. 120 lit./hour at 12 +/-2 degree centigrade. |

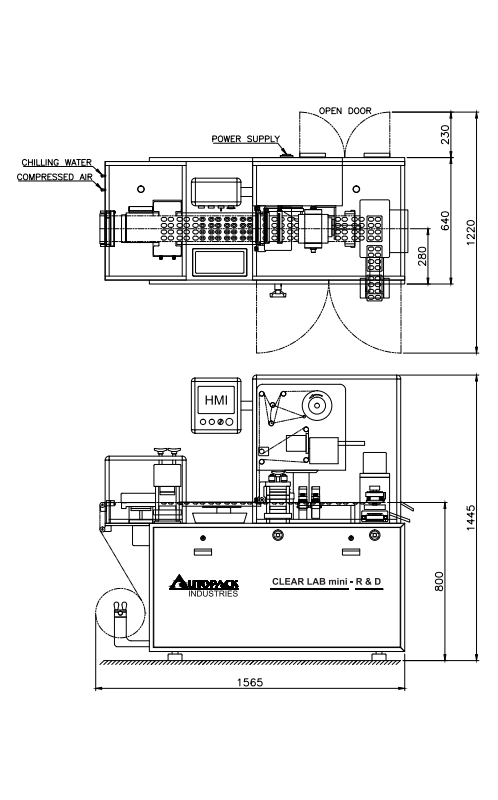

SCHEMATIC LAYOUT:
